PEDROLLO

The Pedrollo range of electric water pumps comprises over 350 models of peripheral water pumps, centrifugal water pumps, self-priming water pumps, borehole water pumps and submersible water pumps, as well as models suitable for pumping diesel, seawater, sewage, effluent and pumps that can be used for aggressive liquids.

4050

CK Range – Self Priming Liquid Ring Pumps

thumbnail of CK pedrollo

Specification Sheet

Flow rate up to 50 l/min (3 m³/h)

Head up to 51 m

Manometric suction lift up to 9 m (HS)

Liquid temperature between -10 °C and +90 °C

Temperature of diesel up to +55°C

Ambient temperature up to +40 °C

Max. working pressure 6 bar • Continuous service S1

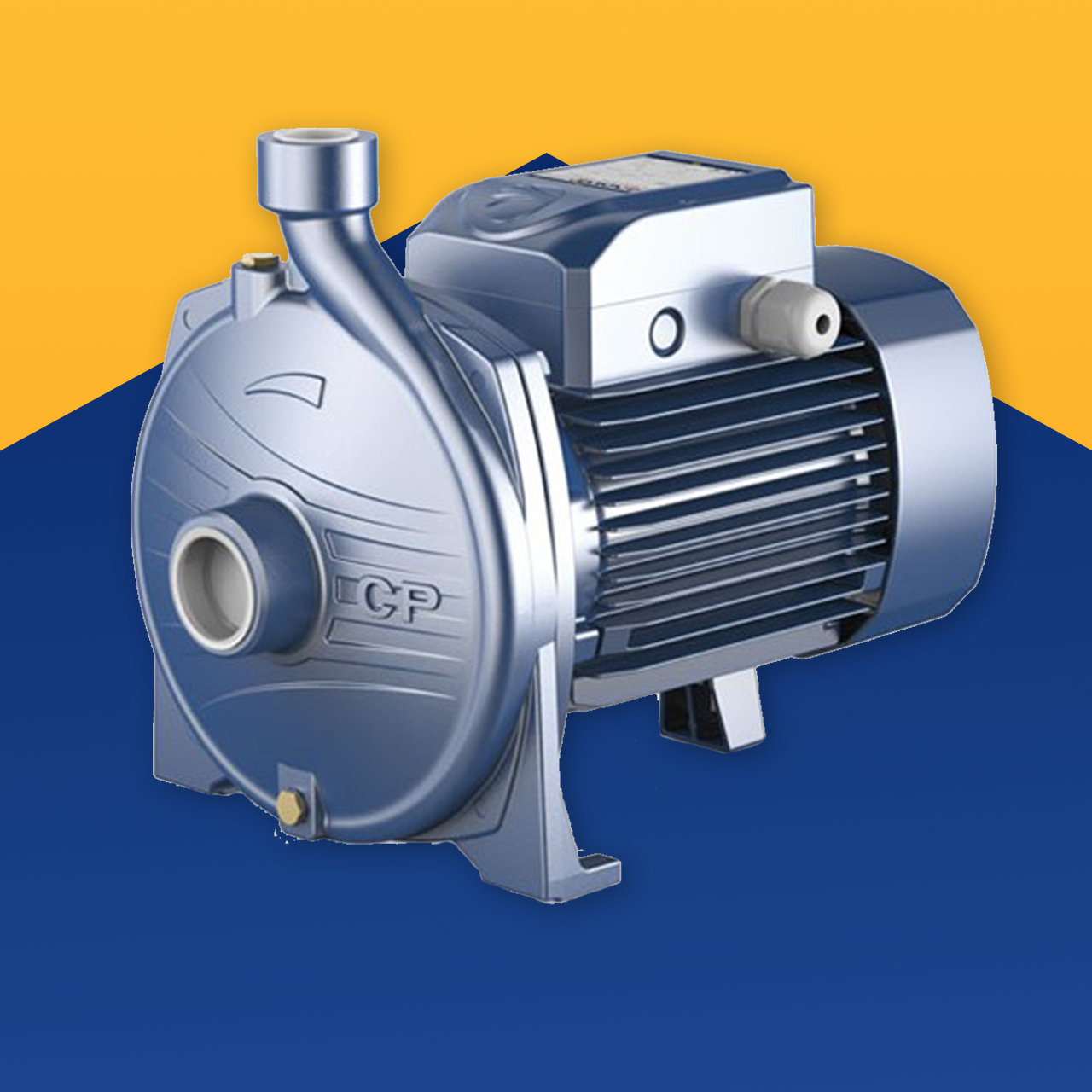

CP Range – Centrifugal Pumps

thumbnail of cp range

Specification Sheet

Flow rate up to 160 l/min (9.6 m³/h)

Head up to 58 m

Manometric suction lift up to 7 m

Liquid temperature between -10 °C and +90 °C (up to +40 for the version with the technopolymer impeller)

Ambient temperature up to +40 °C

Max. working pressure: – 6 bar for CP 100-130-132-150-158 – 10 bar for CP 170-190-200

HF Range – High Flow Centrifugal Pumps

thumbnail of HF-Medium-flow

Specification Sheet

Flow rate up to 600 l/min (36 m³/h)

Head up to 39 m

Manometric suction lift up to 7 m

Liquid temperature between -10 °C and +90 °C

Ambient temperature up to +40 °C

Max. working pressure: – 6 bar for HF 5-50-51 – 10 bar for HF 5M-70

PK Range – End Suction Peripheral Pumps

thumbnail of PK-pedrollo

Specification Sheet

Flow rate up to 90 l/min (5.4 m³/h)

Head up to 100 m

Manometric suction lift up to 8 m

Liquid temperature between -10 °C and +60 °C

Ambient temperature up to +40 °C (+45 °C for PK 60)

Max. working pressure: – 6 bar for PK 60, PK 60-MD, PK 65     – 7 bar for PK 70, PK 80     – 10 bar for PK 90, PK 100, PK 200, PK 300

See our whole range of Pedrollo pumps on our shopping cart website www.fueldump.co.uk
